Key attributes
Displacement：71cm³
Pump Type：Piston Pump
Warranty：1 Year
Place of Origin：Guangdong, China
Connection Size：1/2 inch
Max. Horsepower：5 HP
Number of stages：3 Stages
Operating Pressure：300 bar
Showroom Location：None
Weight：30
Dimension(L*W*H)：standard
Maximum Flow Rate：standard
Power(W)：standard
Pressure：standard
Structure：standard
Warranty：12 Months
Product name：Rexroth Hydraulic Pump
Application：Construction Machinery
Standard or Nonstandard：Standanrd
Customized Support：Support
Color：Customer's Request
Series：A10VSO
Packaging and delivery
Selling Units：Single item
Lead time
| Quantity (sets) | 1 - 30 | > 30 |
| Lead time (days) | 20 | To be negotiated |

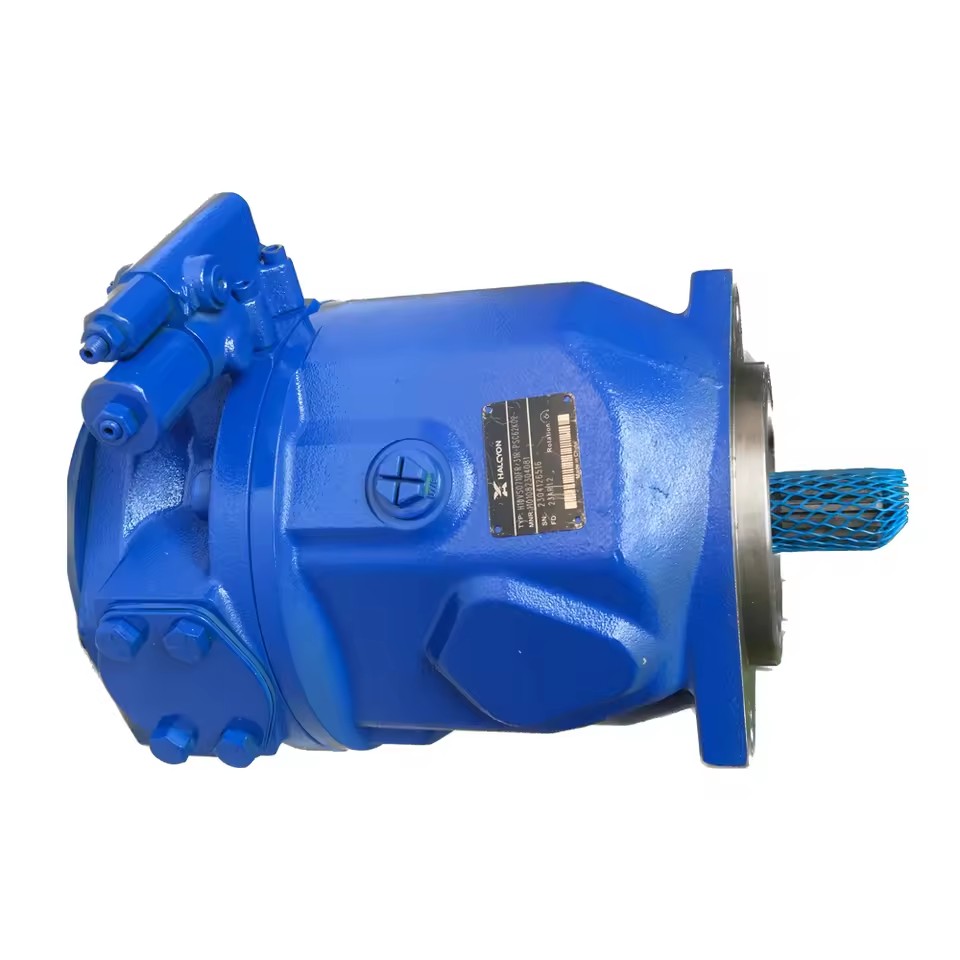

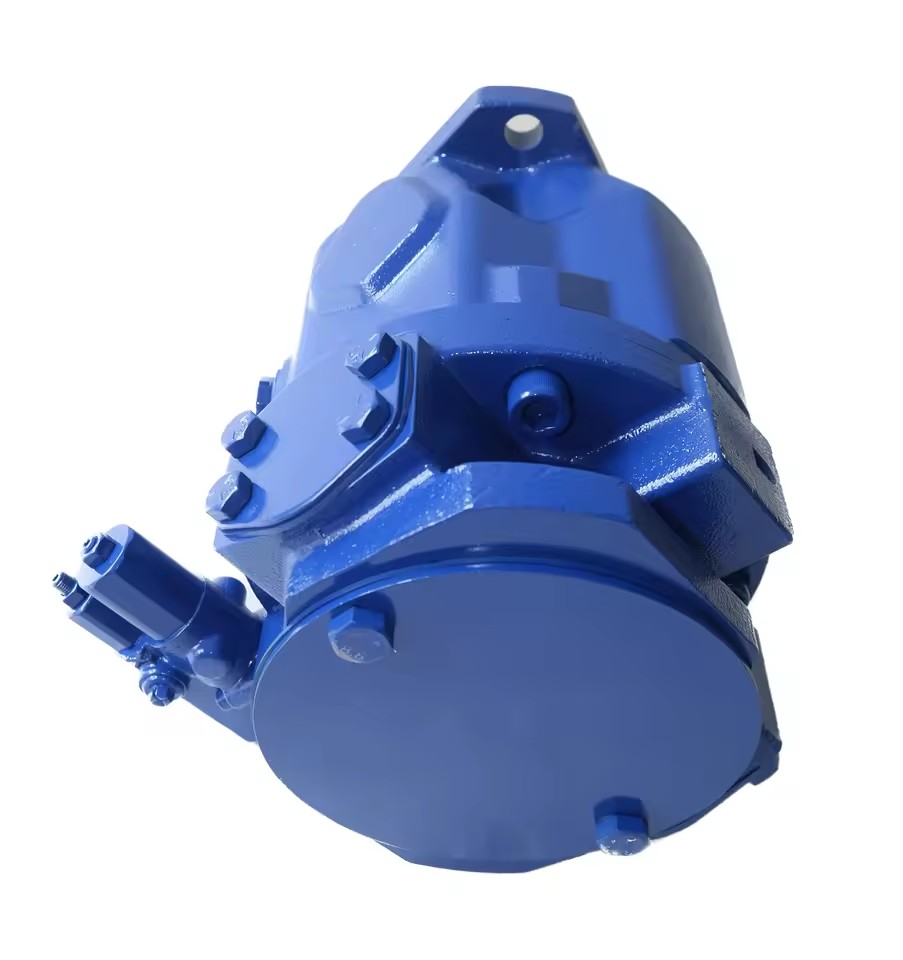

A10VSO71 Rexroth Hydraulic Piston Variable Pump
1. Product application: drilling rig, etc.;
2. Product features
- Displacement 18~140cm3/rev;
- Rated pressure PN 280bar, maximum pressure Pmax 350bar;
- Swash plate structure for hydrostatic transmission in open loop system;
- The output flow rate is proportional to the driving speed and pump displacement. By adjusting the Angle of the swash plate, the flow rate can be adjusted stepless;
- 2 shell drain ports;
- Good oil absorption performance;
- Perfect power to weight ratio;
- Fast response time;
- Through shaft drive, can be combined with other pumps
